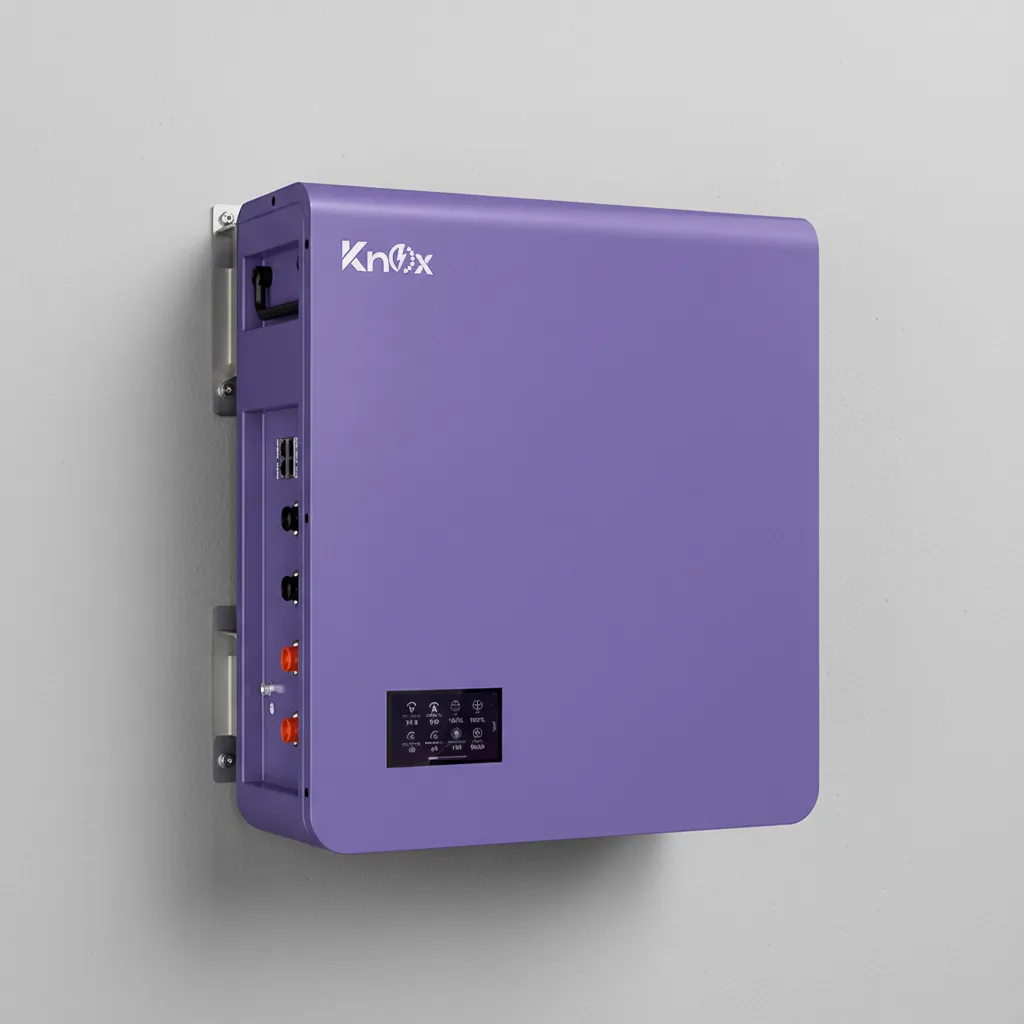

KNOX Powerwall 6.1 LiFePO4 Lithium Battery (LIO 5.12 IP20)  Premium Solar Energy Storage at the Right Price in Pakistan

Introduction

Pakistan’s solar revolution is accelerating at an unprecedented pace, and with it comes the critical question of which battery technology is truly worth your investment. As load shedding continues to challenge both households and businesses, the need for a reliable, safe, and long lasting energy storage solution has never been more urgent. The KNOX Powerwall 6.1 LiFePO4 Battery, carrying the model designation LIO 5.12 IP20 and manufactured by Voltronic Power Taiwan, answers that question with engineering substance rather than marketing promises. It is one of the very few lithium batteries available in Pakistan today where the manufacturer, the chemistry, the specifications, and the warranty all align to deliver genuine long term value.

Manufacturer Credibility

Voltronic Power Taiwan — A Name That Carries Weight

Voltronic Power is a Taiwanese original equipment manufacturer with decades of experience producing solar inverters, UPS systems, and energy storage solutions that are sold under dozens of brand names across more than 80 countries worldwide. Their products power homes, hospitals, data centres, and industrial facilities globally. The KNOX Powerwall 6.1 is not an imported generic cell packed into a local casing. It is a purpose built energy storage unit that originates from Voltronic Power’s own production lines, carrying the same quality assurance processes applied to their internationally distributed product range. For a Pakistani buyer, this means you are purchasing a product with a verifiable global manufacturing pedigree rather than an anonymous assembly.

Technical Specifications

Nominal Voltage and Usable Capacity

The Powerwall 6.1 operates at a nominal voltage of 51.2V, which is derived from 16 LiFePO4 cells connected in series, each with a nominal cell voltage of 3.2V. This 16S configuration is the industry standard for 48V class solar battery systems. The rated capacity of 100AH gives the battery a gross energy rating of 5.12kWh. At a recommended depth of discharge of 80 percent, the usable energy per cycle sits at approximately 4.1kWh, which is sufficient to run essential household loads through an average overnight period when paired with a properly sized solar array.

1C Continuous Discharge and Charge Rate

The Powerwall 6.1 is rated at 1C for both continuous discharge and charging, translating to a maximum continuous current of 100 amps in either direction. This rating is significant because it means the battery can simultaneously support high demand loads such as a 1.5 ton inverter air conditioner, a water pump, and general household lighting without throttling output or triggering protective shutdowns. On the charging side, a 1C rating allows the battery to absorb up to 5.12kW of solar or grid power at once, enabling a full charge cycle within roughly one hour under ideal conditions, or a practical full charge within four to six hours under typical rooftop solar generation.

LiFePO4 Cell Chemistry and Thermal Safety

Lithium Iron Phosphate is chemically the most stable of all lithium ion battery variants. The iron phosphate bond in the cathode material requires significantly more energy to break down compared to cobalt or manganese based chemistries, which is why LiFePO4 cells do not undergo thermal runaway even when punctured, overcharged, or exposed to elevated temperatures. For a country like Pakistan where ambient summer temperatures regularly exceed 40 degrees Celsius in many regions, this thermal stability is not a theoretical advantage but a practical safety necessity. The Powerwall 6.1 is rated for a cycle life exceeding 4000 full charge and discharge cycles at 80 percent depth of discharge, which at one cycle per day corresponds to over eleven years of daily operation before the battery reaches 80 percent of its original capacity.

IP20 Rated Wall Mount Enclosure

The LIO 5.12 IP20 designation tells you something important about how this battery is designed to be installed and used. The IP20 rating under the IEC 60529 standard certifies protection against solid objects larger than 12.5mm, making it appropriate for clean indoor environments such as utility rooms, meter cupboards, and dedicated battery rooms in residential and commercial buildings. The wall mount form factor reduces floor space consumption and keeps the battery off the ground, which is particularly beneficial in areas prone to seasonal flooding or waterlogging. The enclosure also contributes to a clean and professional installation aesthetic that is increasingly expected in modern solar setups.

Battery Management System

The onboard BMS is a critical component that governs every aspect of the battery’s electrical behaviour. It provides cell level monitoring for voltage balancing, state of charge estimation, and state of health tracking. Protective functions include overcharge cutoff, deep discharge protection, overcurrent limiting, short circuit response, and both high and low temperature cutoffs. The BMS communicates with compatible hybrid inverters to enable intelligent charge and discharge scheduling, which improves overall system efficiency and extends battery lifespan.

Warranty Coverage

5 Year Complete Replacement Warranty

The Powerwall 6.1 comes with a 5 year warranty that covers complete replacement of both the cells and the BMS in the event of failure or significant capacity degradation. This is a replacement based warranty rather than a service or repair arrangement, meaning there is no ambiguity about what you receive if a fault develops. Given that lithium battery warranties in Pakistan are frequently limited, vague, or dependent on conditions that are difficult to meet, this straightforward and comprehensive coverage represents a meaningful financial protection for buyers making a serious solar investment.

System Compatibility and Installation

Designed for Pakistan’s Most Popular Solar Inverter Range

The Powerwall 6.1 is fully compatible with 48V class hybrid solar inverters in the 5kW to 8kW range, which collectively represent the majority of residential and small commercial solar installations completed in Pakistan over the past three years. Its communication interface supports seamless integration with Voltronic Power based inverters, enabling coordinated energy management between the solar array, battery, grid input, and load output. Installation is straightforward for any qualified solar technician, and the wall mount chassis reduces the complexity and cost of the overall system setup.
